What is Sheet Metal Forming? Processes, Design Rules, and Manufacturing Considerations

Sheet metal forming is often simplified as “just bending.” In practice, it is one of the most mechanically sensitive operations in metal fabrication.

Every bend introduces tension, compression, and elastic recovery.

Every radius influences crack risk.

Every flat pattern depends on the neutral axis location.

For enclosure manufacturing and structural parts, forming decisions directly affect dimensional accuracy, rigidity, and long-term performance.

This blog explains how sheet metal forming truly works, where design assumptions fail, and what engineers should account for before releasing drawings for production.

What Is Sheet Metal Forming?

Sheet metal forming is a manufacturing process in which flat metal sheets are reshaped into functional geometry through controlled force, without removing material.

Unlike CNC machining, where material is cut away, forming redistributes internal stresses while preserving mass and thickness continuity.

This process is fundamental in manufacturing:

• Electrical enclosures

• Industrial cabinets

• Mounting brackets

• Equipment panels

• Structural housings

In enclosure manufacturing especially, forming determines rigidity, dimensional accuracy, and assembly compatibility.

How Sheet Metal Actually Deforms

At first glance, bending a sheet of metal seems straightforward. Apply force, create angle, release. In reality, forming is a controlled negotiation between force and material behavior.

When a sheet is bent, three things happen simultaneously:

• The outer surface stretches

• The inner surface compresses

• The center layer, known as the neutral axis, shifts inward

The material does not simply “hold” the new shape. After the forming load is removed, elastic recovery occurs. This is why a programmed 90° bend may settle at 87° or 88°.

That small angular recovery is called springback, and even a few degrees can influence enclosure alignment, door fitment, and bracket mounting accuracy.

Forming precision begins with understanding this internal stress behavior.

Neutral Axis, K-Factor, and Why Flat Patterns Fail

One of the most misunderstood aspects of sheet metal forming is flat pattern development.

During bending, the neutral axis does not remain at the center of the thickness. It shifts toward the inside radius. The position of this shift determines how much material is effectively consumed in the bend.

This is where the K-factor becomes critical.

The K-factor represents the ratio of the neutral axis location to the material thickness.

Typical values range from 0.3 to 0.5, depending on:

• Material type

• Thickness

• Bend radius

• Tooling geometry

If the K-factor is estimated incorrectly, the developed flat length will not match the final formed geometry. That’s when prototypes require adjustment.

Bend Allowance: The Core Calculation

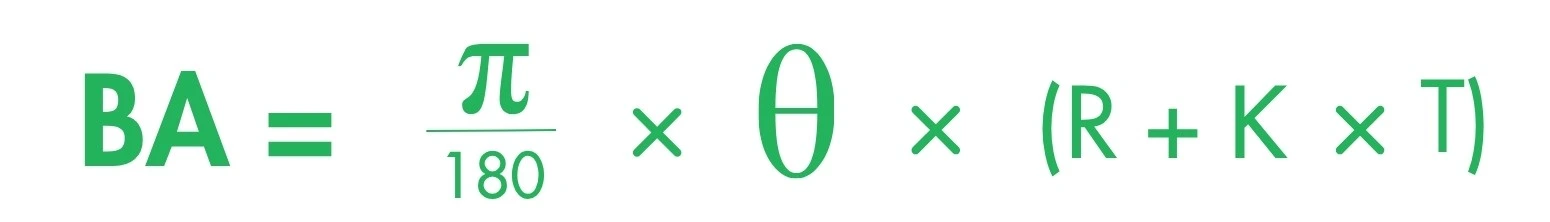

To accurately determine flat length, engineers use the bend allowance formula:

Where:

• θ = bend angle

• R = inside bend radius

• T = material thickness

• K = K-factor

This calculation defines how much material is required to form the bend.

For multi-bend parts, even small errors in bend allowance accumulate. That’s when tolerance stack-up becomes visible during assembly.

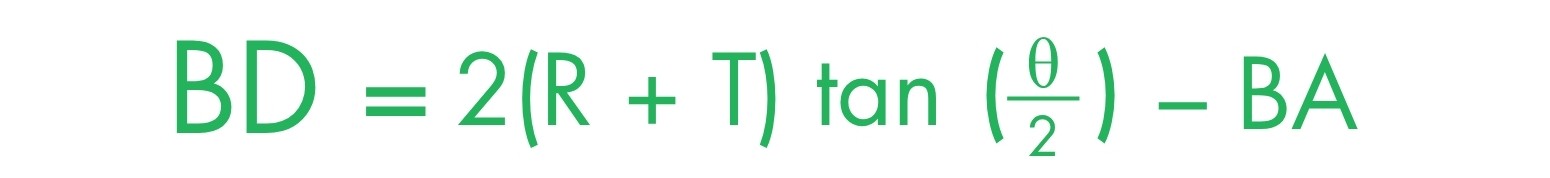

Bend Deduction (When Two Flanges Are Involved)

For parts with multiple flanges, bend deduction helps determine the correct flat pattern length:

This allows designers to calculate how much length must be subtracted to achieve the final geometry accurately.

These formulas are not theoretical. They directly influence production consistency.

Not all metals behave the same during forming.

The minimum inside bend radius must be selected based on material ductility and thickness.

Where T = material thickness.

Bending below recommended limits increases the risk of cracking at the inner radius, especially in harder alloys.

Types of Sheet Metal Forming Processes

Sheet metal forming is not a single operation. In fabrication environments, different forming techniques are used depending on part geometry, production volume, and dimensional requirements. Each process applies force in a controlled way to reshape flat sheet metal into functional parts without removing material.

Understanding these processes helps engineers choose the most suitable manufacturing approach when designing enclosures, brackets, panels, and structural components.

Below are the most commonly used sheet metal forming processes in fabrication.

Bending

Bending is the most widely used sheet metal forming process. It involves applying force through tooling such as punches and dies to create angular deformation along a straight axis.

This process is commonly used in the fabrication of:

• Electrical enclosures

• Mounting brackets

• Industrial panels

• Structural frames




The accuracy of bending depends on several factors including material thickness, bend radius, tooling geometry, and spring back compensation.

Engineers typically use press brakes to perform bending operations with controlled angle precision.

Stamping

Stamping is a high-speed forming process used in mass production environments. It uses a die set and press machine to shape sheet metal through force and pressure.

Stamping operations may include multiple forming actions such as:

• Bending

• Embossing

• Punching

• Coining




Because stamping tools are dedicated dies, this process is highly efficient for large production volumes.

However, it requires significant tooling investment, which makes it less suitable for low-volume custom fabrication.

Deep Drawing

Deep drawing is used when sheet metal must be formed into cup-shaped or cylindrical geometries. The sheet is drawn into a die cavity using a punch while the outer edges are controlled by a blank holder.

Typical applications include:

• Cylindrical enclosures

• Metal containers

• Electronic casings

• Automotive parts




The depth of the formed component can exceed the original sheet thickness multiple times.

Material ductility plays a critical role in determining whether deep drawing is feasible.

Roll Forming

Roll forming is a continuous forming process used to produce long parts with consistent cross-sectional profiles. Instead of forming a part in a single press stroke, the metal sheet passes through a sequence of rollers that gradually shape the material.

This process is commonly used for:

• Structural rails

• Long panels

• Support channels

• Metal frames




Roll forming is especially suitable for high-volume production of long components where dimensional consistency is important.

Flanging

Flanging is a secondary forming process where the edge of a sheet metal part is bent or extended to create a flange. Flanges improve structural rigidity and provide mounting surfaces for fasteners or assembly.

In enclosure manufacturing, flanges are frequently used to:

• Improve panel stiffness

• Create fastening surfaces

• Increase structural strength




Proper flange design must consider minimum flange length and bend radius to avoid cracking.

Key Design Considerations in Sheet Metal Forming

Successful sheet metal forming depends not only on the forming process itself but also on how parts are designed before manufacturing begins. Certain design decisions directly influence forming accuracy, part reliability, and production efficiency.

Engineers should account for the following considerations during the design phase.

Minimum Bend Radius

Every material has a minimum bend radius below which cracking may occur during forming.

Where T = material thickness.

Selecting a radius below these limits increases stress concentration at the inner bend surface.

Hole-to-Bend Distance

When holes are placed too close to bend lines, they may distort during forming due to localized stress.

Recommended guideline:

Hole distance ≥ 2T

Maintaining sufficient spacing helps preserve hole geometry after bending.

Material Selection

Material properties such as ductility, yield strength, and thickness influence how the metal behaves during forming.

For example:

• Aluminum forms easily but may require larger bend radii

• Stainless steel offers strength but exhibits greater springback




Selecting the correct material improves forming reliability.

Flat Pattern Development

Flat pattern calculations determine the correct blank length before forming.

Incorrect flat patterns can cause:

• Flange misalignment

• Dimensional errors

• Assembly difficulties




Engineering calculations such as bend allowance and bend deduction are used to predict final geometry.

Common Challenges in Sheet Metal Forming

Even well-designed sheet metal parts can experience forming issues if material behavior and process limitations are not considered early. A few key challenges commonly appear during forming operations.

Springback:  After bending, the material partially recovers due to elastic deformation. This causes the final bend angle to differ from the programmed angle, typically by 1–3° depending on material and thickness.

Hole Distortion: Holes located too close to bend lines may stretch or deform during forming. This can affect fastener alignment and assembly accuracy.

Material Cracking: If the bend radius is smaller than the material's forming limit, cracks may develop along the inner bend surface.

Flat Pattern Errors: Incorrect bend allowance or K-factor estimation can cause mismatches between the flat pattern and the final formed geometry.

How Mech Power Approaches Sheet Metal Forming

Sheet metal forming becomes more predictable when design validation and manufacturing feasibility are aligned early.

At Mech Power, engineering teams evaluate forming requirements before fabrication begins. This includes reviewing material behavior, bend limits, flat pattern calculations, and tooling compatibility.

• Material-specific bend limits are evaluated
• Flat pattern calculations are verified
• Tooling geometry is selected based on thickness
• Bends are controlled for repeatability
• Dimensional inspection follows forming

This reduces late-stage corrections and improves part predictability.

For engineers evaluating new parts, our Sheet Metal Parts Instant Quote allows quick evaluation of design feasibility and production timelines.

Conclusion

Sheet metal forming is a fundamental manufacturing process that transforms flat metal sheets into functional components used across countless industries.

Understanding how materials deform during forming, applying correct bend calculations, and designing parts within manufacturing limits can significantly improve production accuracy.

When engineers align design decisions with forming mechanics early in the development process, sheet metal parts transition more smoothly from design to fabrication.

If you are working on enclosures, brackets, or custom sheet metal components, exploring manufacturing feasibility early can simplify production planning and reduce design iterations.

You can also explore our sheet metal fabrication services or request an instant quote for sheet metal parts to evaluate manufacturing options for your next project.
